HVDC RF 25kV (current pulsed)
Power Converter Characteristics:
| FAMILY NAME | HVDC (High Voltage DC) | ||
| APPLICATION | RF Tube Anode powering | ||
| HCR CODE | RPACW | ||
| POWER IN | 400 VAC / 10A (3Phases + N) | ||
| ELECTRONIC CONTROL TYPE | FGC3 | ||
| OUTPUT | 25kVDC / 20A pulsed 2ms @ 2Hz | ||

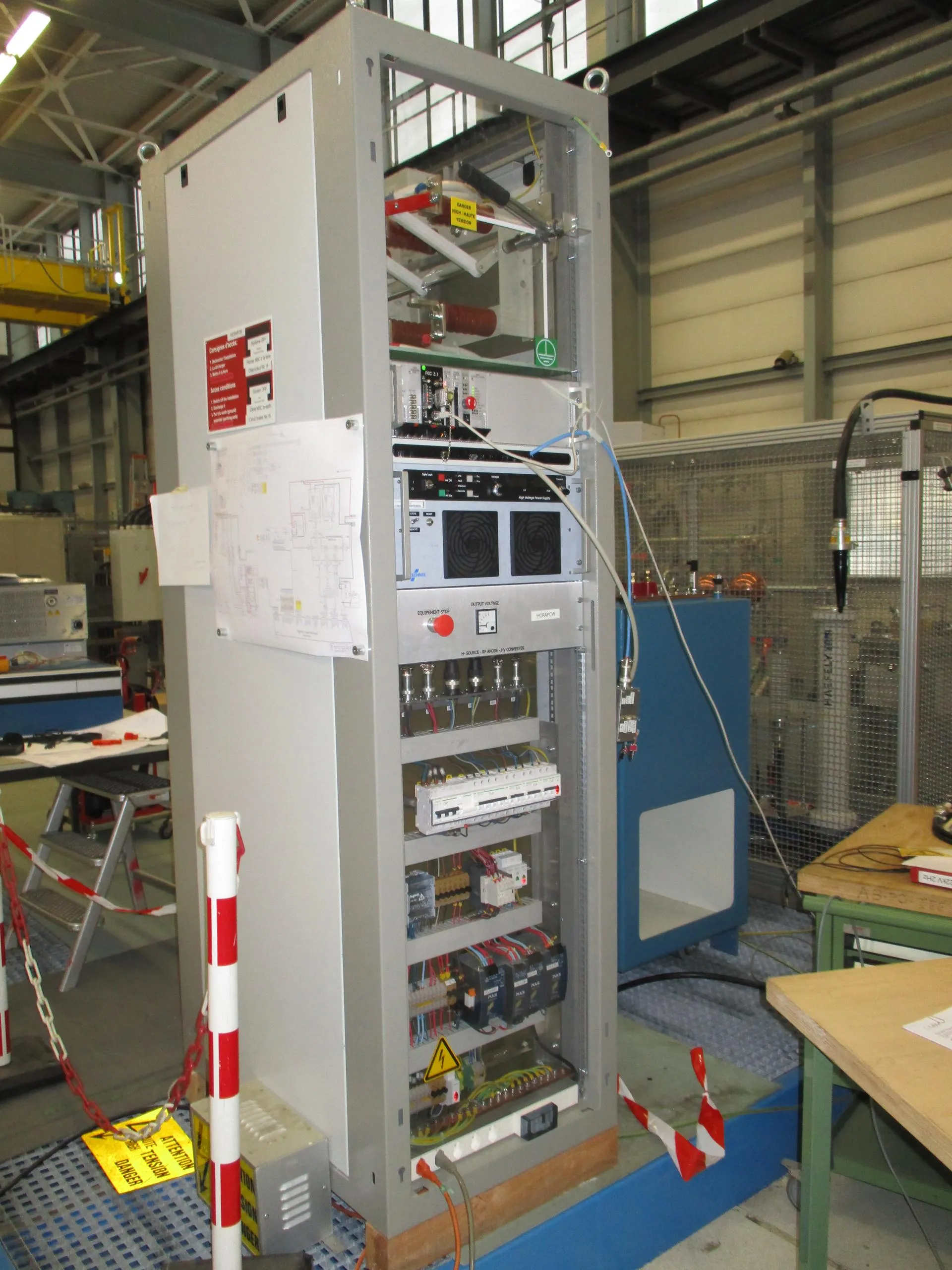

Photos:
Topology:
