MaxiDisCap

CharacteristicsPhotosTopology
Anchor

Power Converter Characteristics:

FAMILY NAMECurrent Pulsed Converters
APPLICATIONMagnet powering
CONFIGURATIONMaxiDisCap #2MaxiDisCap #3MaxiDisCap 10Hz
HCR CODERPJBIRPZESRPZEL
POWER IN230 VAC / 10A
ELECTRONIC CONTROL TYPEFGC3 / G64
OUTPUT900V / 320A plused 5ms @ 2Hz
Anchor

Photos:

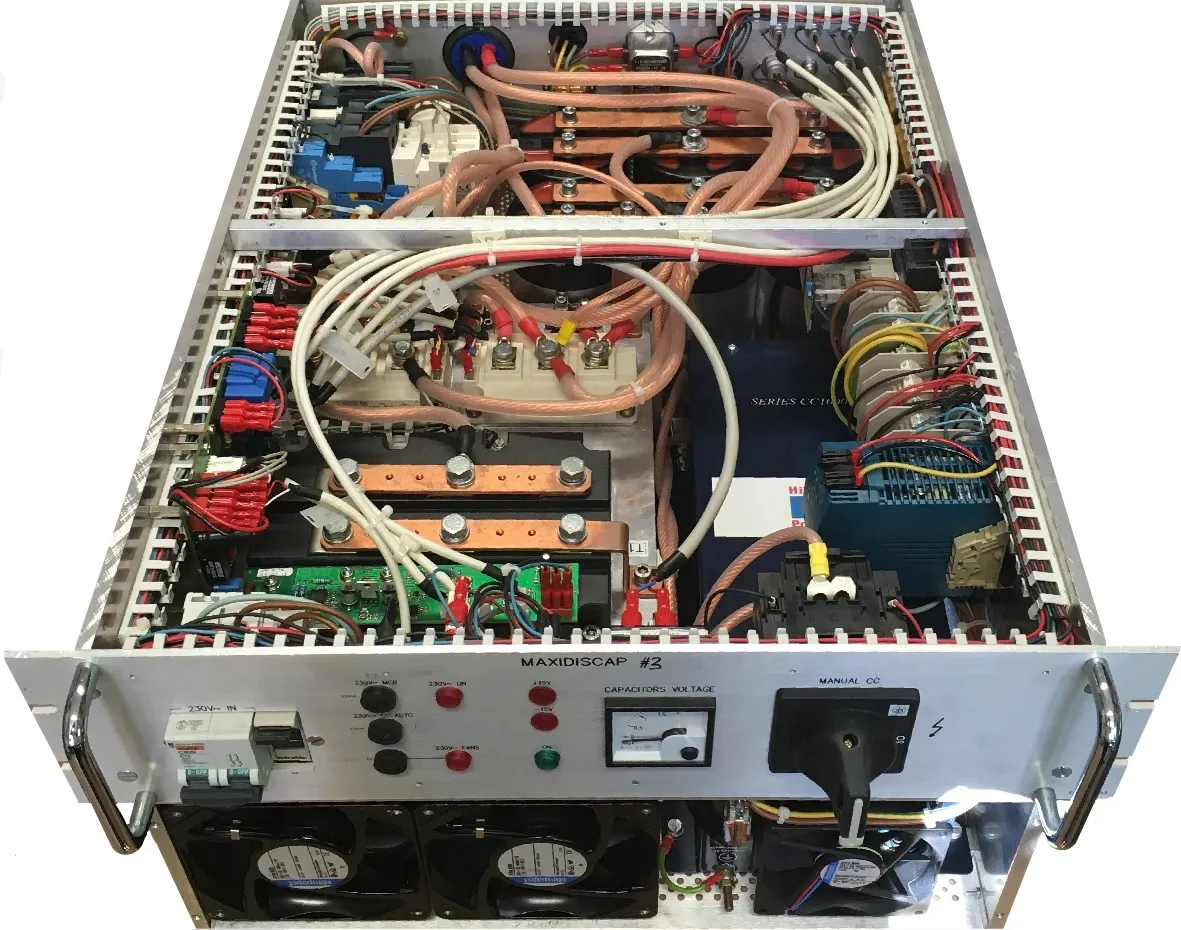

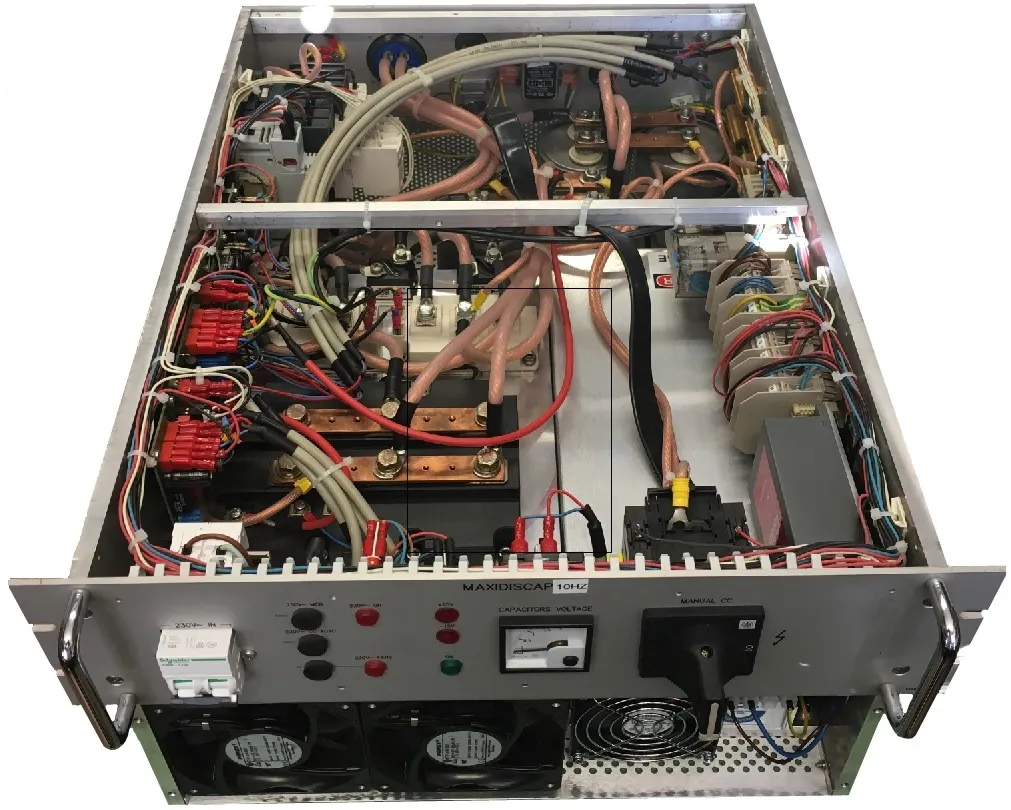

MaxiDisCap #3 (2Hz)MaxiDisCap 10Hz
MaxiDisCap 2HzMaxiDisCap 10Hz

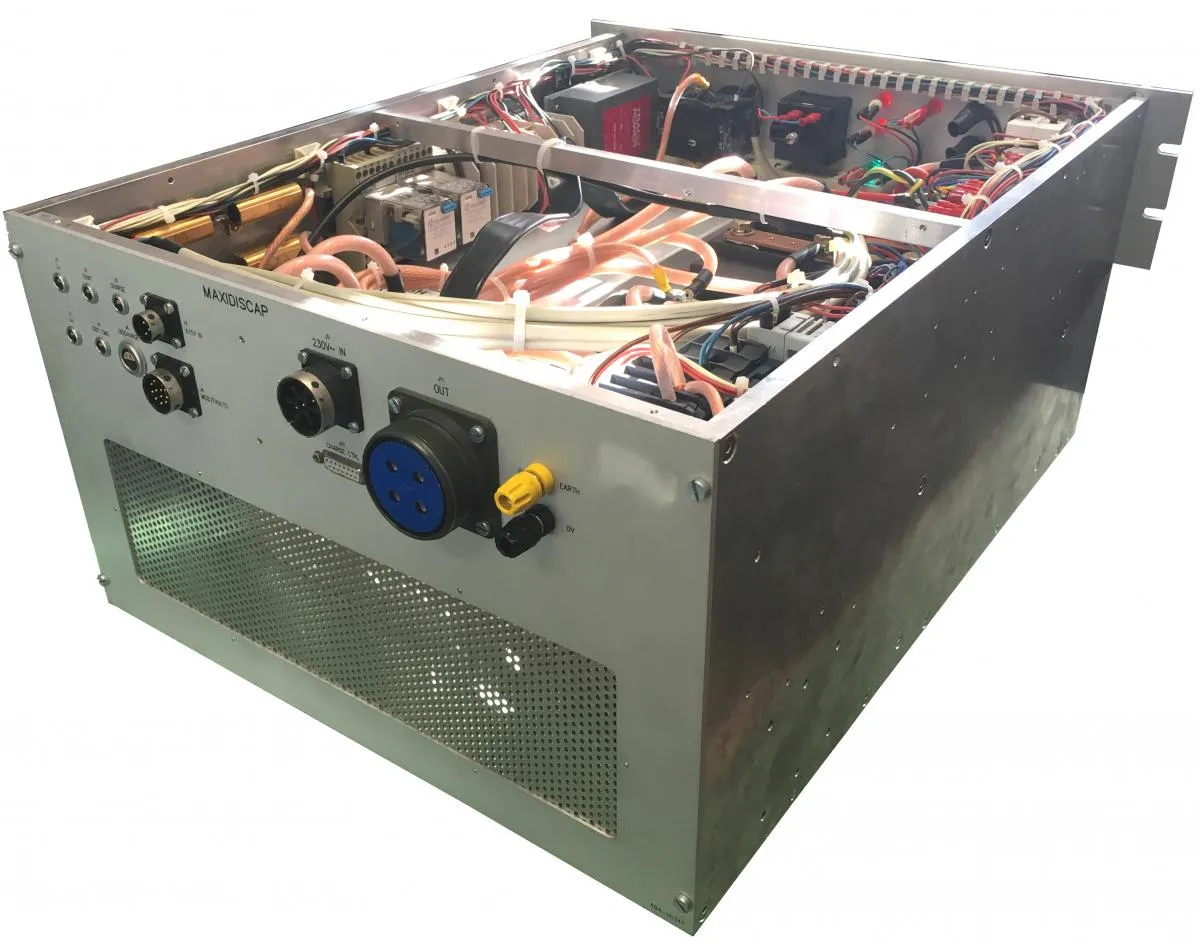

MaxiDisCap Back Panel
Anchor

Topology:

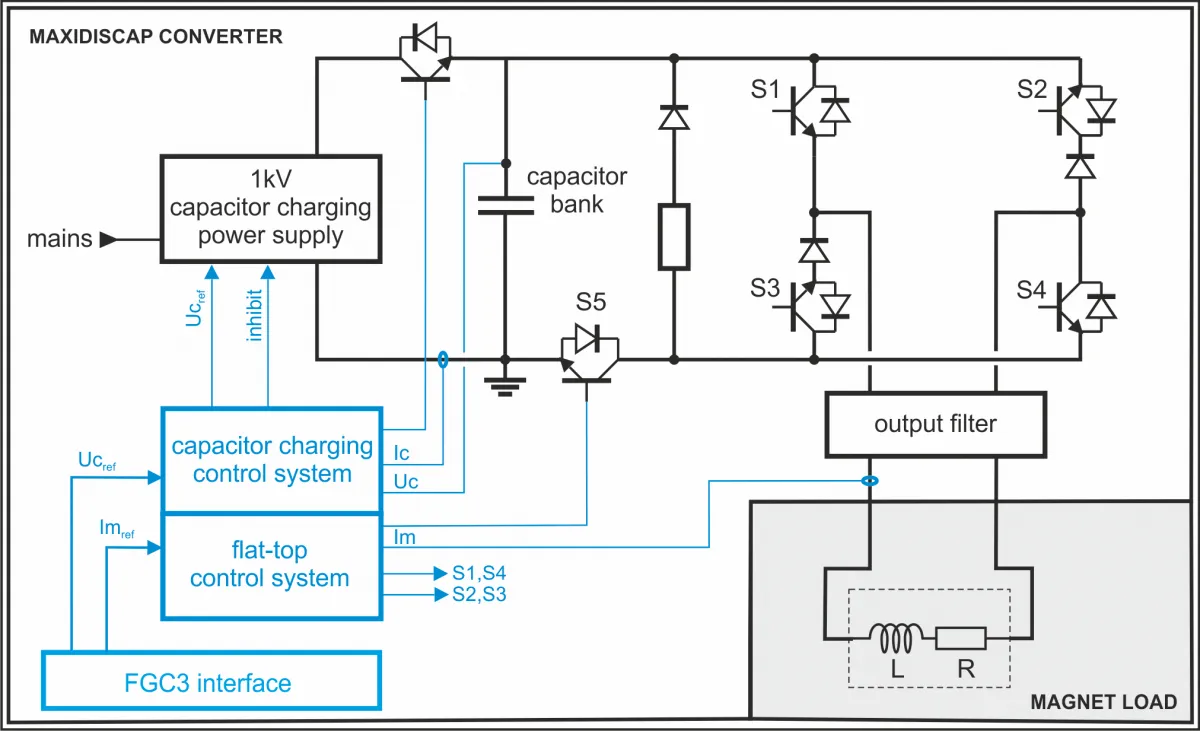

Topology MaxiDisCap
