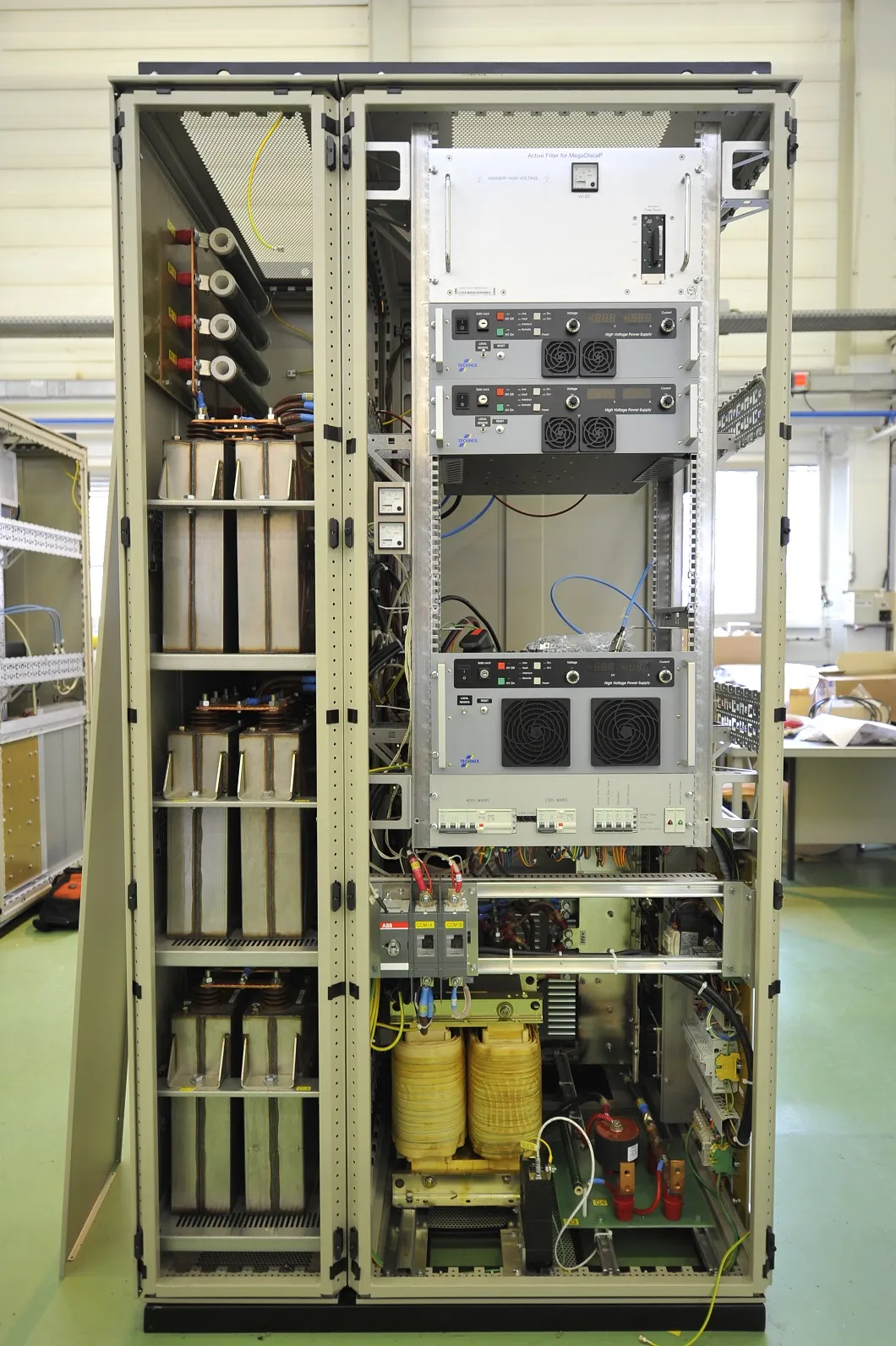

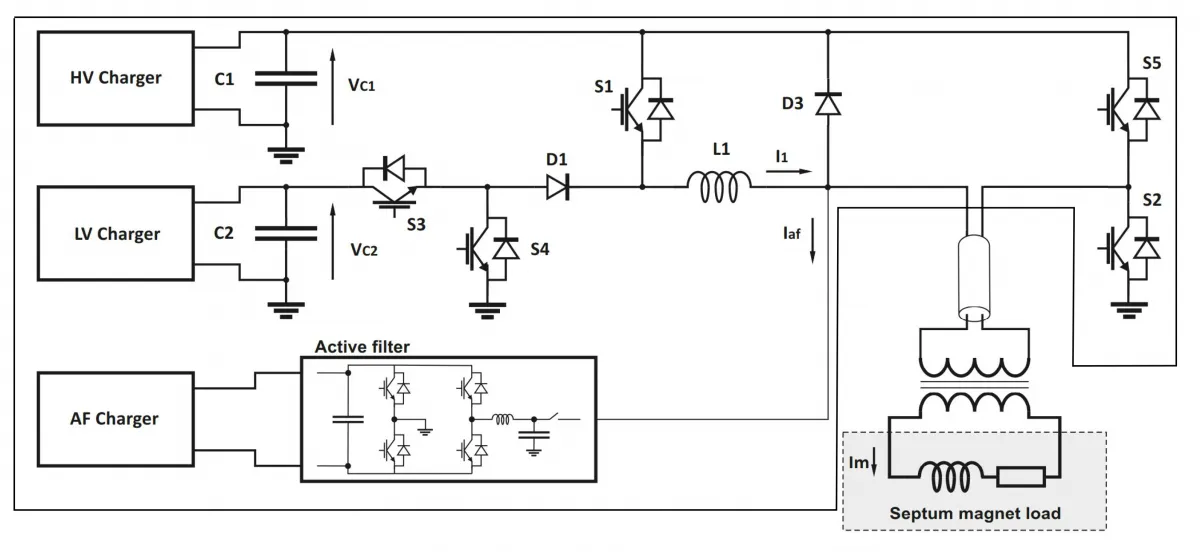

| Characteristics | Photos | Topology |
Power Converter Characteristics:
| FAMILY NAME | Current Pulsed Converter | ||||||
| APPLICATION | Pulsed Magnet Powering (With or Without Pulse Transformer) | ||||||
| POWER CONVERTER INPUT | 3x400 Vac + N / 50A | ||||||
| MAX POWER CABINET OUTPUT | 2kA / 2.5kV pulsed 30ms @ 4Hz | ||||||
| POWER CONVERTER HC CODE | RPAAK | RPAGD | RPAFZ | RPAAM | RPAGC | RPAGA | |
| CABINET HC CODE | RMAAS001 | RMAAU001 | RMAAU003 | RMAAU002 | RMAAT001 | RMAAU001 | RMAAU002 |
|
HV CAPACITOR INSTALLED |
14 | 2 | 14 | 4 | 2 |
2 |
4 |
| ELECTRONIC CONTROL TYPE | G64 | RegFGC3 | |||||
| PULSE TRANSFORMER | No | No | r=6 - HCRTACX001 | r=20 - HCRTACZ001 | r=8 - HCRTACV001 | r=16 - HCRTACW001 | |
|
PULSE CURRENT ON LOAD |
2kA LEM - 10ms @ 1Hz | 2.4kA DCCT - 10ms @ 1Hz | 12kA DCCT - 10ms @ 1Hz | 24kA DCCT - 10ms @ 1Hz | 24kA DCCT - 10ms @ 4Hz | 34kA DCCT - 10ms @ 1Hz | |
| MACHINE IMPLEMENTATION / EDMS | AD / EDMS | AD / EDMS | BOOSTER / EDMS | BOOSTER / EDMS | ESRF / EDMS | BOOSTER / EDMS | |
| INSTALATION PROCEDURE | EDMS 1763342 | EDMS 1763342 | EDMS 1763342 | ||||
| SCHEMATICS | EDMS 1183456 | EDMS 1764160 | EDMS 1764160 | EDMS 1764160 | EDMS 1764160 | ||
