MiniDisCap
Power Converter Characteristics:
| FAMILY NAME | Current Pulsed Converter | ||
| APPLICATION | Magnet powering | ||
| HCR CODE | RPAAB | ||
| POWER IN | 230 VAC / 6A | ||
| ELECTRONIC CONTROL TYPE | G64 | ||
| OUTPUT | 700V / +/-20A pulsed 10ms @10Hz | ||

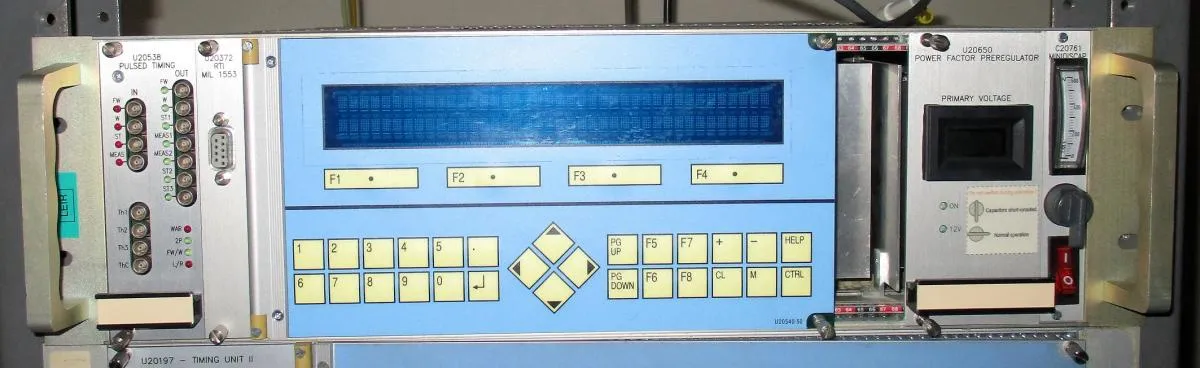

Photos:
Topology:
